Changing the Network Interface Card (NIC) for your Linewize 40D Appliance

This article discusses changing the network card for your 40D Linewize appliance.  Changing the network card will be necessary if there is a hardware failure or if you are upgrading from a copper NIC to a fiber NIC.

Before you begin:

Before you start the replacement, ensure that you have the following:

• Booked a call outside of school hours with a Linewize Deployment Engineer.
• Received your Network Interface Card (NIC)
• PH1 Screwdriver
• A VGA cable, monitor, and keyboard to access the command line

Changing the Network Interface Card (NIC) for a 40D

Before joining your call with the Linewize Deployment Engineer:

1. Power off the appliance.
2. Remove the network and power cables from the appliance.
3. Using a PH1 screwdriver, remove the four screws securing the appliance to the server rack.
4. Depress the two buttons on the top of the chassis to release the top cover of the appliance.

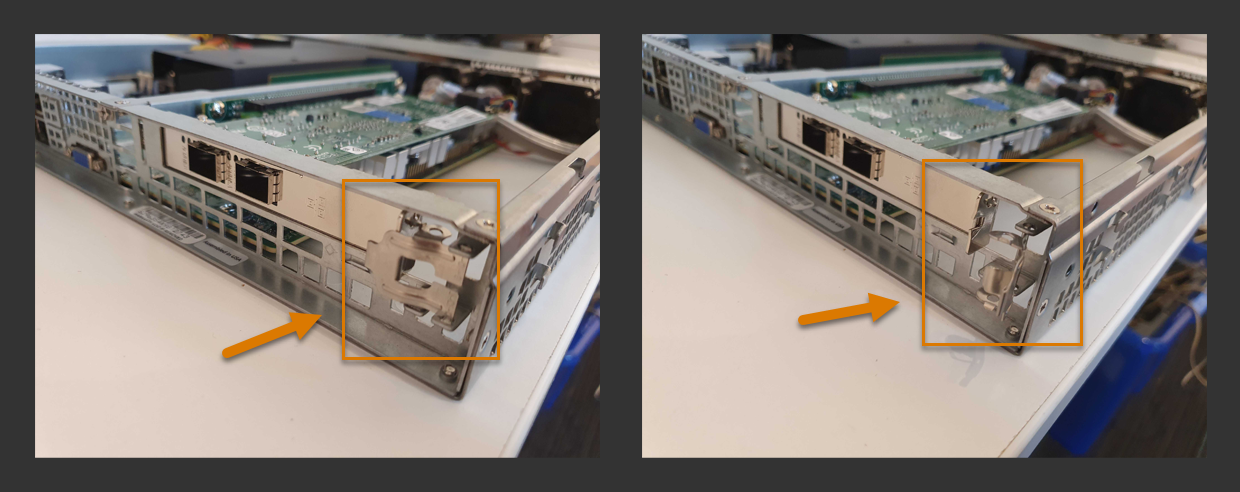

5. Unhinge the PCI front mount.

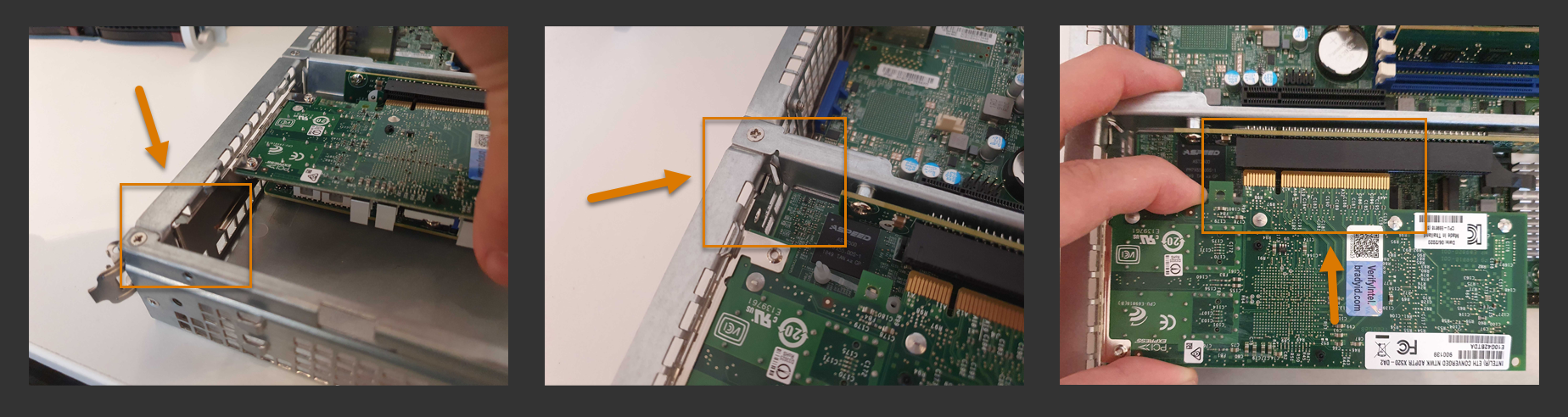

6. Gently remove the NIC from the PCI slot.

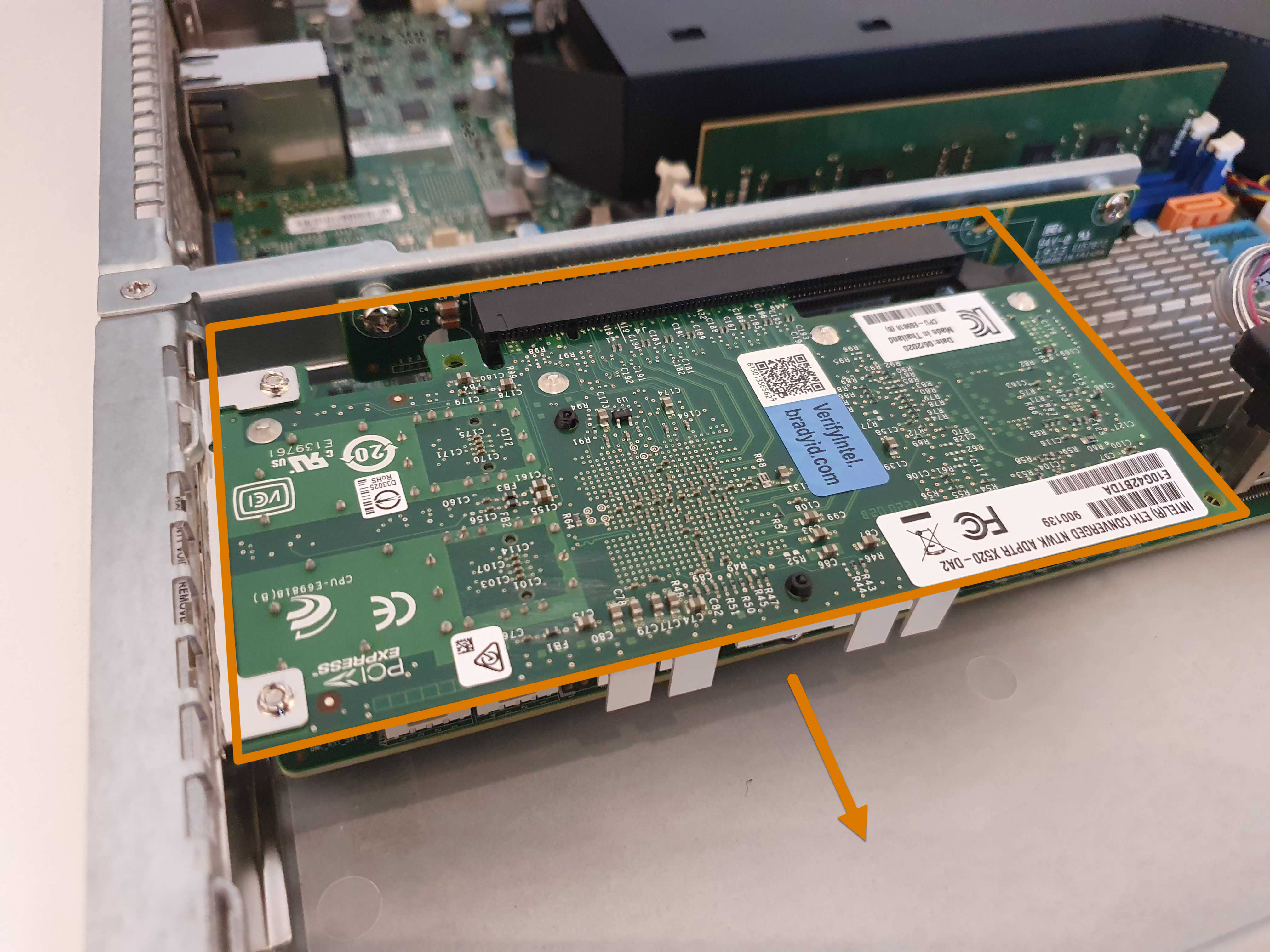

7. Carefully align and seat the card into the PCI slot by applying gentle pressure along the length of the card.

8. Hinge the PCI front mount.
9. Install the cover onto the appliance.
10. Install the appliance in the server rack along with the four screws.
11. Plug in the cables including the VGA cable, monitor, and keyboard.
12. Power ON the appliance.
13. Contact your Deployment Engineer for the next steps.
